Vibration detector and Pre-amplifier |
||||
IECEx Certificate
No. |
IECEx
TIIS 16.0005X |
|||
Explosion-proof
symbol |
Ex
ia UC T4
Ga |
|||
Vibration detector |
||||
TD-3228-6 Low temperature
type (LNG, LPG, etc.) |
||||
|
||||
Detection system:
Piezoelectric type accelerating transmitter (Piezo- electric system) Output terminal: Coaxial connector (Micro connector) Hermetic sealing type Frequency range: 2Hz
〜 6,000Hz Output sensitivity: Voltage output Approximately 14mV0-P/9.8m/s2
(1G) Electric
charge output Approximately 170pC/9.8m/s2 (1G) Capacitance: Approximately 12,000
pF (Standard
value) Output impedance: 1000MΩ and over (DC 50 V) Category temperature range: -196℃ 〜
+120℃ Resonance frequency: 25kHz±10% |
||||
TD-3228-7 Low temperature
type (small-sized)(LNG,
LPG, etc.) |
||||
|
||||
Detection system:
Piezoelectric type accelerating transmitter (Piezo- electric system) Output terminal:
Coaxial connector (Micro connector) Frequency range: 2Hz
〜 6,000Hz Output sensitivity: Voltage output Approximately 14mV0-P/9.8m/s2
(1G) Electric
charge output Approximately 170pC/9.8m/s2 (1G) Capacitance: Approximately 12,000
pF (Standard
value) Output impedance: 1000MΩ and over (DC 50 V) Category temperature range: -196℃ 〜
+120℃ Resonance frequency: 32kHz±10% |
||||
TD-3111-1 General type (Ethylene,
LPG, etc.) |
||||
|
||||
Detection system:
Piezoelectric type accelerating transmitter (Piezo- electric system) Output terminal:
Coaxial connector (Micro connector) Frequency range: 2Hz
〜 6,000Hz Output sensitivity: Voltage output Approximately 50mV0-P/9.8m/s2
(1G) Electric
charge output Approximately 50pC/9.8m/s2 (1G) Capacitance: Approximately 1,000 pF
(Standard
value) Output impedance: 1000MΩ and over (DC 50 V) Category temperature range: -196℃ 〜
+120℃ Resonance frequency: 32kHz±10% |
||||
TD-3226-7 Waterproof (In oil) type (Water
resistant 1.67MPa) |
||||
|
||||
Detection system:
Piezoelectric type accelerating transmitter (Piezo- electric system) Output terminal: Low
noise coaxial cable Frequency range: 10Hz 〜
10kHz Output sensitivity: Voltage output Approximately 50mV0-P/9.8m/s2
(1G) Electric
charge output Approximately 50pC/9.8m/s2 (1G) Capacitance: Approximately 1,000 pF
(Standard
value) Output impedance: 1000MΩ and over (DC 50 V) Category temperature range: -196℃ 〜
+120℃ Resonance frequency: 32kHz±10% |
||||
Pre-amplifier |
||||
TP-3217 Output AC |
||||
|
||||
Input system: Charge
amplifier system Output sensitivity: 10.2mV/m/s2, with input 17.3pC/m/s2
(Standard
value) Acceleration range: 490 m/s2 0-P, max Range of load resistance: 10,000Ω Frequency response: 30Hz 〜 3kHz ±1dB, -24dB/oct BPF Supplied power supply: -18V 〜 -24VDC, (Within 30mA) Operation temperature range: -60℃ 〜 +60℃ |
||||

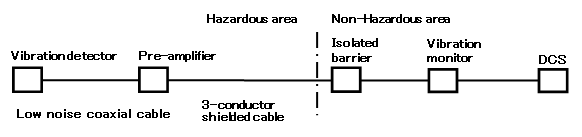

System configuration
|
||||
TP-3218 Output DC 4-20mA |
||||
|
||||
Input system: Charge
amplifier system Output sensitivity: 0.16mA/m/s2, with input 17.3pC/m/s2
(Standard
value) Acceleration range: 490 m/s2 0-P, max Range of load resistance: 300Ω Frequency response: 30Hz 〜 3kHz ±1dB, -24dB/oct BPF Supplied power supply: +18V 〜 +24VDC, (Within 30mA) Operation temperature range: -20℃ 〜 +60℃ |
||||

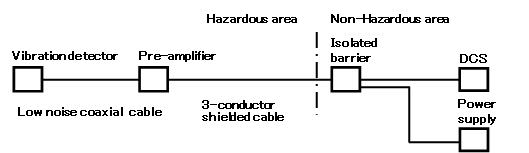

System configuration
|
