Vibration detector and Pre-amplifier |
||||
|
IECEx Certificate
No. |
IECEx
TIIS 16.0005X |
|||
|
Explosion-proof
symbol |
Ex
ia ⅡCC T4
Ga |
|||
|
Vibration detector |
||||
|
TD-3228-6 Low temperature
type (LNG, LPG, etc.) |
||||
|
|
||||
|
Detection system：
Piezoelectric type accelerating transmitter (Piezo- electric system) Output terminal： Coaxial connector (Micro connector) Hermetic sealing type Frequency range： 2Hz
～ 6,000Hz Output sensitivity: Voltage output Approximately 14mV0-P/9.8m/s2
(1G) Electric
charge output Approximately 170pC/9.8m/s2 (1G) Capacitance： Approximately 12,000
pF (Standard
value) Output impedance： 1000MΩ and over (DC 50 V) Category temperature range：-196： ～
+120： Resonance frequency：25kHz±10% |
||||
|
TD-3228-7 Low temperature
type (small-sized)(LNG,
LPG, etc.) |
||||
|
|
||||
|
Detection system：
Piezoelectric type accelerating transmitter (Piezo- electric system) Output terminal：
Coaxial connector (Micro connector) Frequency range： 2Hz
～ 6,000Hz Output sensitivity: Voltage output Approximately 14mV0-P/9.8m/s2
(1G) Electric
charge output Approximately 170pC/9.8m/s2 (1G) Capacitance： Approximately 12,000
pF (Standard
value) Output impedance： 1000MΩ and over (DC 50 V) Category temperature range：-196： ～
+120： Resonance frequency：32kHz±10% |
||||
|
TD-3111-1 General type (Ethylene,
LPG, etc.) |
||||
|
|
||||
|
Detection system：
Piezoelectric type accelerating transmitter (Piezo- electric system) Output terminal：
Coaxial connector (Micro connector) Frequency range： 2Hz
～ 6,000Hz Output sensitivity: Voltage output Approximately 50mV0-P/9.8m/s2
(1G) Electric
charge output Approximately 50pC/9.8m/s2 (1G) Capacitance： Approximately 1,000 pF
(Standard
value) Output impedance： 1000MΩ and over (DC 50 V) Category temperature range：-196： ～
+120： Resonance frequency：32kHz±10% |
||||
|
TD-3226-7 Waterproof (In oil) type: @(Water
resistant 1.67MPa: j |
||||
|
|
||||
|
Detection system：
Piezoelectric type accelerating transmitter (Piezo- electric system) Output terminal：Low
noise coaxial cable Frequency range： 10Hz ～
10kHz Output sensitivity: Voltage output Approximately 50mV0-P/9.8m/s2
(1G) Electric
charge output Approximately 50pC/9.8m/s2 (1G) Capacitance： Approximately 1,000 pF
(Standard
value) Output impedance： 1000MΩ and over (DC 50 V) Category temperature range：-196： ～
+120： Resonance frequency：32kHz±10% |
||||
|
Pre-amplifier |
||||
|
TP-3217 Output AC |
||||
|
|
||||
|
Input system：Charge
amplifier system Output sensitivity: 10.2mV/m/s2, with input 17.3pC/m/s2
(Standard
value) Acceleration range: 490 m/s2 0-P, max Range of load resistance：10,000: Frequency response：30Hz: @: ` 3kHz ±1dB, -24dB/oct BPF Supplied power supply：-18V: @: ` -24VDC, (Within 30mA) Operation temperature range：-60： ～ +60： |
||||
|

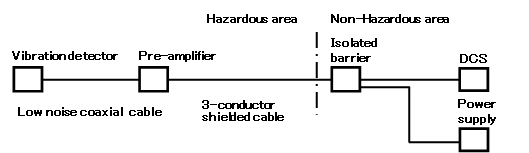

System configuration
|
||||
|
TP-3218 Output: @DC 4-20mA |
||||
|
|
||||
|
Input system：Charge
amplifier system Output sensitivity: 0.16mA/m/s2, with input 17.3pC/m/s2
(Standard
value) Acceleration range: 490 m/s2 0-P, max Range of load resistance：300: Frequency response：30Hz: @: ` 3kHz ±1dB, -24dB/oct BPF Supplied power supply：+18V: @: ` +24VDC, (Within 30mA) Operation temperature range：-20： ～ +60： |
||||
|

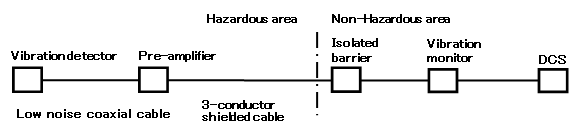

System configuration
|
||||
